Promotional Activities Of Automatic Chain Link Fence Making Machine
Chain Link Fence Making Machine Specification
| Power Consumption | 10-12 HP |
| Usage / Application | Chain Link Fence Making |
| Production Capacity | 2500-3000 kg/Day |
| Oeration Mode | Fully Automatic |
| Power | 10/12 HP |
| Material | GI/PVC/SS |
| Power Type | III Phase |
| Size Of Mesh | 30-125mm |
| Thickness | 1.6mm to 4mm |
| GI Wire | 1.6mm to 4mm |
| PVC wire | 2.5mm to 6mm |
| SS Wire | 1.6mm to 4mm |
| MOQ | 1 Set |
Chain Link Fence Machine Information
Our wide range of automatic chain link machines are equipped with heavy duty motors,
Mitsubishi PLC and Schneider electricals are capable of running 24x7 even in commercial quality wires.
3 Lock types: Knuckle-knuckle, Knuckle-twist, Twist-twist.
Production: 2-2.5 Tonnes/-Day
1. Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
2. The chain link is automatically wound to form rolls when the desired length is manufactured.
3. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
4. One side or both sides of the end of net hole is twisted or with burr in edge.
5. Use compacting machine to make it into rolls.
Chain Link Fence Making Machine Models As Following
| Model | XR-2000 | XR-3000 | XR-4000 | XR-5000 | XR-6000 |
| Maximum height | 2000 mm | 3000 mm | 4000 mm | 5000 mm | 6000 mm |
| Roll length | 10-25 m | 10-25m | 10-25m | 10-25 m | 10-25 m |
| Wire diameter | 1.5-4.8 mm | 1.5-4.8 mm | 1.5-4.8 mm | 1.5-4.8 mm | 1.5-4.8 mm |
| Capacity | 120 m2/h | 125 m2/h | 130 m2/h | 135 m2/h | 140 m2/h |
Chain Link Fence Making Machine Technical Parameter
1. Width scope of weaving: 1--4m; suitable for all kinds of Electro-galvanized, hot-dipped galvanized diamond shape mesh
2. Mesh scope of weaving: 30--100mm(According to the requirements of customers, can provide 2 different types of knife molds)
3. Wire scope of weaving: 1.8—4.0mm
4. The output per minute: for example: if the mesh is 50*50mm,width 2000mm, the output will be 1M2/min
5. The machine is controlled by PLC automatic controller
6. Power consumption: 9KW
7. Weight of equipment: 4200kg
8. Outside size: main machine:6700*1430*1800mm 5100*1700*1250mm
9. Electric System:
1)Japan Mitsubishi PLC origin
2)Servo motor
3)Low-voltage electrical from France Schneider
4)Electric & Machinery from Taiwan Teco Electric
5)Clutch from Taiwan YA CO., LTD.
10. Suitable wire to the machine: high-quality low-carbon steel wire, Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad Steel Wire
11. Chain link Fence is extensively used as fences for playground and gardens, highway, railway, airport, port, residence, etc.
12. Mesh size for different Diameter of wire;
| Diameter of Wire | Mesh opening size |
| 1.8mm | 30—40mm |
| 2.0mm | 30—50mm |
| 2.2mm | 30—60mm |
| 2.5mm | 40—70mm |
| 2.8mm | 50—80mm |
| 3.0mm | 60—80mm |
| 3.2mm | 70—80mm |
| 3.5mm | 80—100mm |
| 4.0mm | 100mmX100mm |
Additional Information
| Delivery Time | 20-25Days |
| Packing Details | Thick plastic bubble wrap and cardboard packing |
Product Tags:
|
|

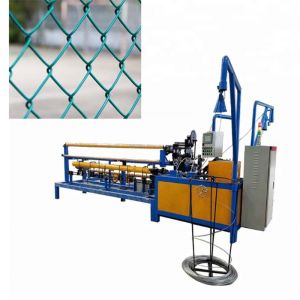

1.5kw Automatic 4.0m Chain Link Fence Making Machine Images
|
